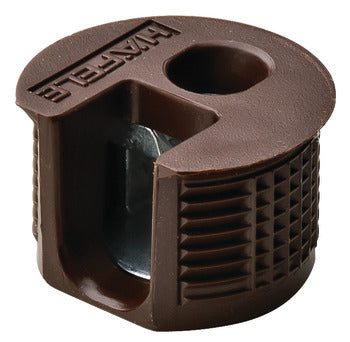

Connector Housing, Rafix 20 Flush System
No projecting parts due to the countersunk rim on the housing
Housing is mounted flush to shelf
Panels can be stacked without spacers
Without ridge
With tightening element
Mounting center: 9.5 mm
For wood thickness: 19 mm
Dim. A: 9.50 mm
Drilling depth: 14.2 mm +0.2 mm
Drill hole Ø housing: 20.00 mm
For panel material: Wood
Version: with rim, with tightening element, without ridge, without dowel, With countersunk rim
Drive: PZ2 cross slot, PH2 cross slot
Material: Plastic, Tightening element: Zinc alloy
Installation: flush-mounted
